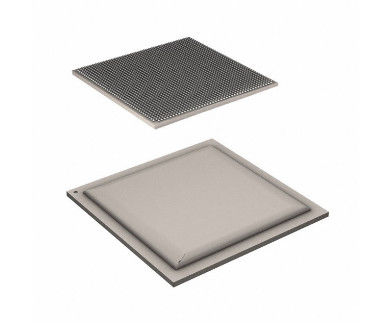

64 Bit MPU Microprocessor Power Arch T4240NSN7PQB 24 X 1.5GHz Threads

T4240NSN7PQB    N X P    Microprocessor MPU 64b Power Arch 24x 1.5GHz threads FC-PBGA-1932

Manufacturer: N X P
Product Category: Microprocessors - MPUs
Installation style: SMD/SMT
Package / Box: FC-PBGA-1932
Core: e6500
Number of cores: 12 Core
Data bus width: 64 bit
Maximum Clock Frequency: 1.5 GHz
L1 cache instruction memory: 12 x 32 kB
L1 cache data memory: 12 x 32 kB
Operating supply voltage: 1.025 V
Minimum working temperature: 0 C
Maximum working temperature: + 105 C
Package: Tray
I/O voltage: 1.35 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
Interface type: Ethernet, I2C, PCIe, SPI, UART, USB
L2 cache instruction/data memory: 2 MB
Storage type: L1/L2 Cache
Humidity Sensitivity: Yes
Processor Family: QorlQ
Packing Quantity: 12 PCS
Watchdog Timer: Watchdog Timer
Part Number Alias: 935323503557
Unit weight: 29.212 g

T4240NSE7QTB

T4240NSN7TTB

T4240NSN7QTB
T4240NXE7PQB
T4240NSE7TTB

T4240NXN7PQB

T4240NSE7PQB

T4080NSN7PQB

T4080NXN7PQB

T4080NSN7QTB

T4080NXE7PQB
T4080NSE7QTB
T4080NSE7PQB

T4160NXN7PQB
T4160NSN7PQB
T4160NSN7QTB
T4160NSN7TTB
T4160NSE7QTB
T4160NSE7TTB
T4160NXE7PQB
T4160NSE7PQB
