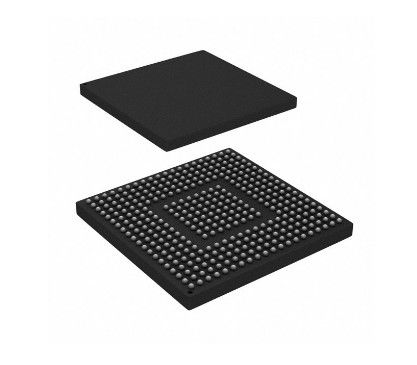

32 Bit MPU Microprocessor Cortex-A5 MVF50NN152CMK40 400MHz MAPBGA-364

MVF50NN152CMK40     N X P     Vybrid F 32-bit MPU ARM Cortex-A5 core 400MHz MAPBGA-364    AEC-Q100

Manufacturer: N X P
Product Category: Microprocessors - MPUs
Installation style: SMD/SMT
Package / Box: BGA-364
Series: VF5xx
Core: ARM Cortex A5
Number of cores: 1 Core
Data bus width: 32 bit
Maximum clock frequency: 400 MHz
L1 cache instruction memory: 32 kB
L1 cache data memory: 32 kB
Operating supply voltage: 1.2 V
Maximum working temperature: + 85 C
Qualification: AEC-Q100
Package: Tray
Data RAM size: 1500 kB
Data ROM size: 96 kB
Manual Type: Floating Point
Interface type: I2C, LIN, SCI, SPI, UART, USB
Storage type: DDR3, LPDDR2
Humidity Sensitivity: Yes
Packing Quantity: 450 PCS
Brand Name: Vybrid
Watchdog Timer: Watchdog Timer
Part Number Alias: 935339751557
Unit weight: 1.390 g

MVF50NS152CMK40

MVF50NN152CMK50

MVF50NS152CMK50R

MVF51NN152CMK50
MVF51NS152CMK50
