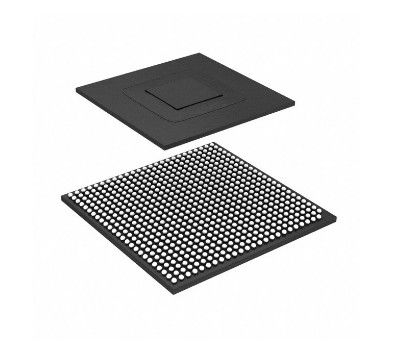

MPU 32 Bit Microprocessor ARM Cortex A9 MCIMX6S1AVM08AB MAPBGA-624

MCIMX6S1AVM08AB     N X P     i.MX 6 series 32-bit MPU ARM Cortex A9 core 800MHz MAPBGA-624    AEC-Q100

Manufacturer: N X P
Product Category: Microprocessors - MPUs
Installation style: SMD/SMT
Package / Box: MAPBGA-624
Series: i.MX 6Solo/6DualLite
Core: ARM Cortex A9
Number of cores: 1 Core
Data bus width: 32 bit
Maximum clock frequency: 800 MHz
L1 cache instruction memory: 32 kB
L1 cache data memory: 32 kB
Operating supply voltage: 1.25 V to 1.5 V
Minimum working temperature: - 40 C
Maximum working temperature: + 125 C
Qualification: AEC-Q100
Package: Tray
Data RAM size: 144 kB
Data ROM size: 96 kB
I/O voltage: 1.2 V, 1.35 V, 1.5 V
Manual Type: Floating Point
Interface type: I2C, I2S, PCIe, UART
L2 cache instruction/data memory: 512 kB
Storage Type: DDR3, DDR3L, LPDDR2, NOR Flash, PSRAM
Humidity Sensitivity: Yes
Processor family: i.MX 6Solo
Packing Quantity: 300 PCS
Brand name: i.MX
Watchdog Timer: Watchdog Timer
Part Number Alias: 935319989557
Unit weight: 1.252 g
