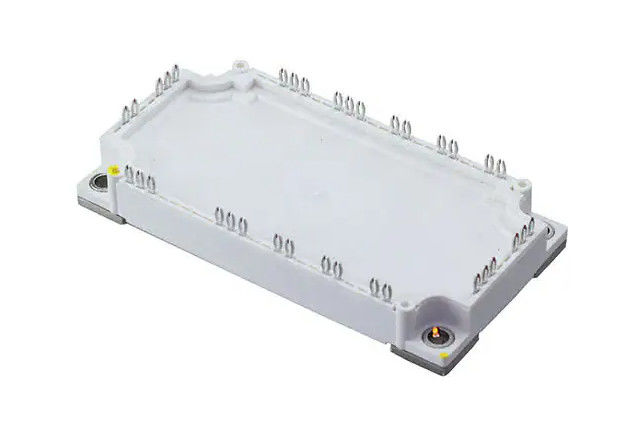

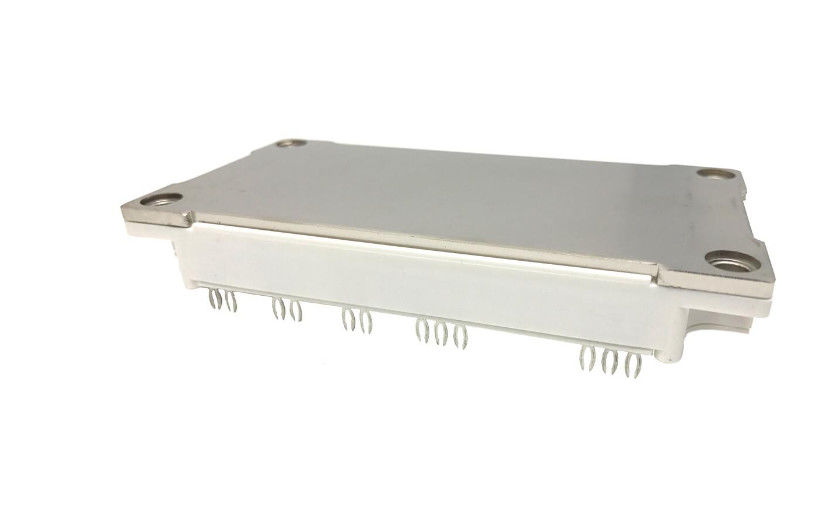

FP75R12KT4B11BOSA1 SP000355575 Infineon IGBT Module LOW POWER ECONO
FP75R12KT4_B11
Manufacturer: Infineon
Product Type: IGBT Modules
Configuration: 3-Phase Inverter
Collector-emitter maximum voltage VCEO: 1.2 kV
Collector-emitter saturation voltage: 1.85 V
Continuous collector current at 25 C: 75 A
Gate-emitter leakage current: 100 nA
Pd-power dissipation: 385 W
Package / Cabinet: Econo 3
Minimum working temperature: - 40 C
Maximum working temperature: + 150 C
Package: Tray
Height: 17mm
Length: 122mm
Gate/emitter maximum voltage: 20 V
Mounting Style: Chassis Mount
Product Type: IGBT Modules
Series: Trenchstop IGBT4 - T4
Packing Quantity: 10 PCS
Subcategory: IGBTs
Technology: Si
