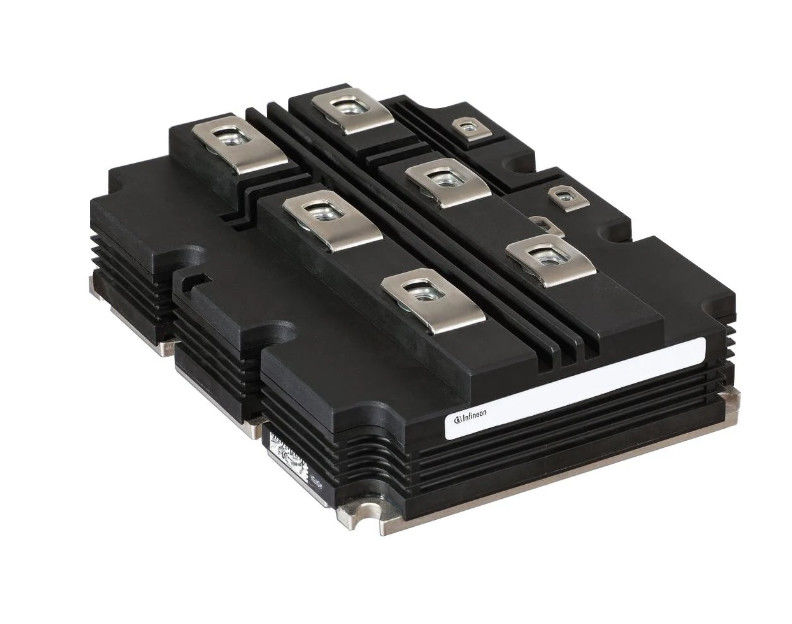

FZ3600R17HP4HOSA2 SP001172096 Infineon Inside IGBT Module IGBT Inverter 1700V 3600A
FZ3600R17HP4
Manufacturer: Infineon
Product Type: IGBT Modules
Configuration: Single
Collector-emitter maximum voltage VCEO: 1.7 kV
Collector-emitter saturation voltage: 1.9 V
Continuous collector current at 25 C: 3.6 kA
Gate-emitter leakage current: 400 nA
Pd-power dissipation: 21 kW
Package / Box: Module
Minimum working temperature: - 40 C
Maximum working temperature: + 150 C
Package: Tray
Gate/emitter maximum voltage: 20 V
Mounting Style: Chassis Mount
Series: IGBT4 - P4
Package Quantity: 1 PCS
Subcategory: IGBTs
Technology: Si
Our products are sold all over the world, you can rest assured.
