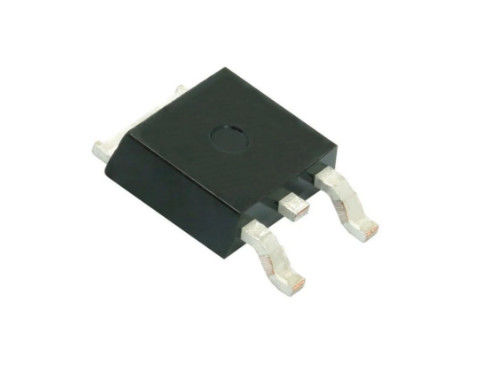

STGD20N45LZAG ST Automotive Grade 450 V Internally Clamped IGBT ESCIS 300 MJ TO-252

Manufacturer: STMicroelectronics
Product Type: IGBT Transistor
Technology: Si
Package/Case: DPAK-3 (TO-252-3)
Mounting Style: SMD/SMT
Configuration: Single
Collector-Emitter Maximum Voltage VCEO: 475 V
Collector-Emitter Saturation Voltage: 1.25 V
Gate/Emitter Maximum Voltage: - 12 V, 16 V
Continuous Collector Current at 25 C: 25 A
Pd-Power Dissipation: 150 W
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Series: STGD20N45LZAG
Qualification: AEC-Q101
Package: Reel
Package: Cut Tape
Package: MouseReel
Trademark: STMicroelectronics
Collector Maximum Continuous Current Ic: 25 A
Gate-Emitter Leakage Current: 625 uA
Product Type: IGBT Transistors
Package Quantity: 2500 PCS
Subcategory: IGBTs
Unit Weight: 330 mg
