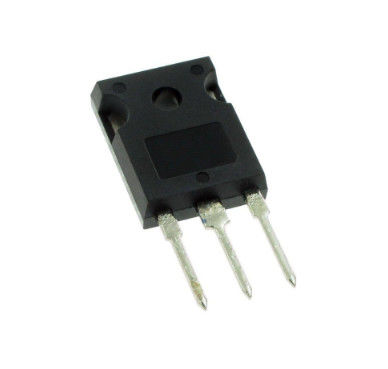

STGW15H120DF2 ST IGBT Transistor 15A High Speed TO-247

Manufacturer: STMicroelectronics
Product Category: IGBT Transistors
Technology: Si
Package/Case: TO-247-3
Mounting Style: Through Hole
Configuration: Single
Collector-Emitter Maximum Voltage VCEO: 1.2 kV
Collector-Emitter Saturation Voltage: 2.1 V
Gate/Emitter Maximum Voltage: - 20 V, 20 V
Continuous Collector Current at 25 C: 30 A
Pd-Power Dissipation: 259 W
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Series: STGW15H120DF2
Package: Tube
Brand: STMicroelectronics
Collector Maximum Continuous Current Ic: 15 A
Gate-Emitter Leakage Current: 250 nA
Product Type: IGBT Transistors
Package Quantity: 600 PCS
Subcategory: IGBTs
Unit Weight: 38 g
