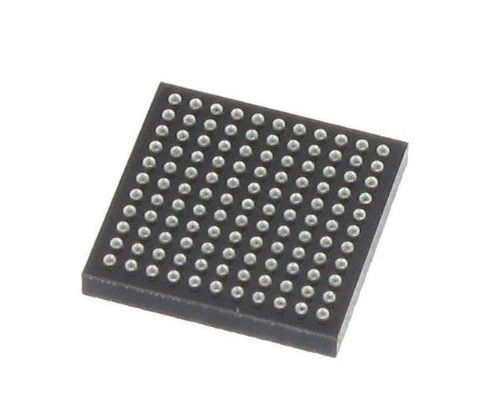

LFD2NX-40-8MG121C Lattice Certus-NX General Purpose FPGA on Nexus platform (28nm FD-SOI) BGA-121
Manufacturer: Lattice
Series: LFD2NX-40
Number of logic elements: 39000 LE
Embedded memory: 1.48 Mbit
Number of inputs/outputs: 81 I/O
Supply voltage - minimum: 950 mV
Supply voltage - Max: 1.05 V
Minimum operating temperature: 0 C
Maximum operating temperature: +85 C
Installation style: SMD/SMT
Package: Tray
Trademark: Lattice
Distributed RAM: 240 kbit
Embedded block RAM - EBR: 84 kbit
Maximum operating frequency: 500 MHz
Humidity Sensitivity: Yes
Operating power supply voltage: 1 V
Brand name: Certus-NX
