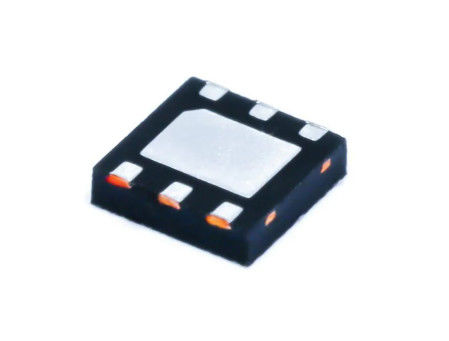

LP38691SD-3.3/NOPB TI Low Dropout Voltage Regulator 500Ma LDO Reg WSON-6

Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package / Cabinet: WSON-6
Output voltage: 3.3 V
Output current: 500 mA
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 100 uA
Input voltage (minimum): 2.7 V
Input voltage (maximum): 10 V
PSRR/Ripple Rejection—Typical: 55 dB
Output type: Fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 250 mV
Series: LP38691
Package: Reel
Flyback Voltage—Max: 0.11 V at 100 mA, 0.55 V at 500 mA
Ib - Input bias current: 55 uA
Line regulation: 0.03 %/V
Load regulation: 1.8 %/A
Operating power current: 55 uA
Products: Linear Regulators
Packing quantity: 1000 PCS
Tolerance: 4%
Voltage regulation accuracy: 2%
Unit weight: 21.500 mg
