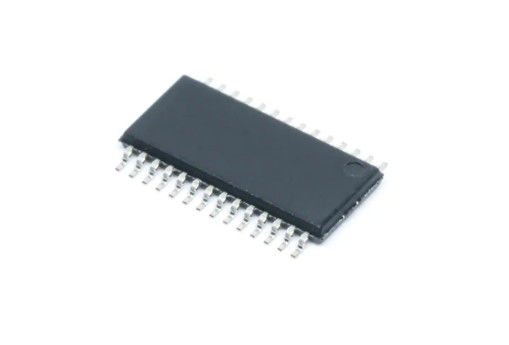

TPS767D301PWP TI Dual Output LDO Voltage Regulator HTSSOP-28

Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package/Case: HTSSOP-28
Output current: 1 A
Number of outputs: 2 Output
Polarity: Positive
Quiescent current: 85 uA
Input voltage (minimum): 2.7 V
Input voltage (maximum): 10 V
Output type: Adjustable, Fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 350 mV
Series: TPS767D301
Package: Tube
Flyback Voltage—Max: 575 mV
Height: 1.15 mm
Ib - Input bias current: 85 uA
Length: 9.7mm
Line regulation: 0.01 %/V
Load regulation: 3 mV
Humidity Sensitivity: Yes
Operating power current: 80 uA
Output voltage range: 1.5 V to 5.5 V, 3.3 V
Pd-power dissipation: 5.07 W
Packing quantity: 50 PCS
Voltage regulation accuracy: 2%
Width: 4.4 mm
Unit weight: 118.500 mg
