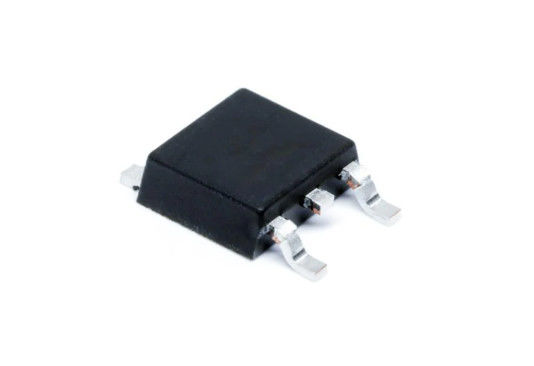

LM1117IDT-ADJ/NOPB TI Low Dropout Voltage Regulator 800mA LDO Linear Reg TO-252-3

LM1117IDT-ADJ/NOPB     TI     Low Dropout Voltage Regulator 800mA LDO Linear Reg     TO-252-3

Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package / Box: TO-252-3
Output voltage: 1.25 V to 13.8 V
Output current: 800 mA
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 5 mA
Input voltage (minimum): 2.6 V
Input voltage (maximum): 15 V
PSRR/Ripple Rejection—Typical: 75 dB
Output type: Adjustable
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 1.2 V
Series: LM1117
Package: Tube
Flyback Voltage—Max: 1.3 V at 100 mA, 1.35 V at 500 mA, 1.4 V at 800 mA
Ib - Input bias current: 5 mA
Line regulation rate: 0.035 %
Load regulation: 0.2 %
Humidity Sensitivity: Yes
Operating power current: 5 mA
Reference voltage: 1.262 V
Packing Quantity: 75 PCS
Voltage regulation accuracy: 1%
Unit weight: 4 g
