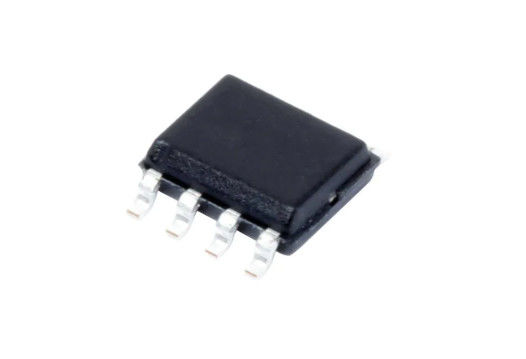

TPS7A7002DDAR TI Low Dropout Voltage Regulator 3A SGL Out Low Inpt Adj LDO Linear Reg SOP-8

TPS7A7002DDAR    TI    Low dropout voltage regulator 3A SGL Out Low Inpt Adj LDO Linear Reg    SOP-8

Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package/Case: SO-PowerPad-8
Output current: 3 A
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 1 uA
Input voltage (minimum): 1.425 V
Input voltage (max): 6.5 V
Output type: Adjustable
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 200 mV
Series: TPS7A7002
Package: Reel
Flyback Voltage—Max: 600 mV
Line regulation: 0.2 %/V
Load regulation: 0.25 %/A
Humidity Sensitivity: Yes
Operating power current: 3 mA
Output voltage range: 500 mV to 5 V
Packing quantity: 2500 PCS
Voltage regulation accuracy: 3%
Unit weight: 300 mg
