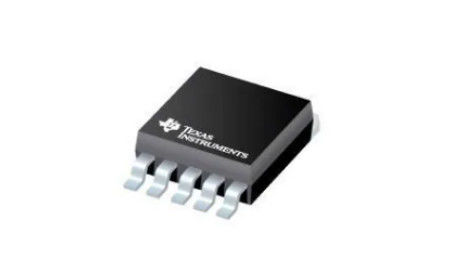

TPS7B8750QKVURQ1R2 TI Automotive 500-mA, 40-V, low dropout regulator with power good TO-252-5
Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package / Box: TO-252-5
Output voltage: 5 V
Output current: 500 mA
Quiescent current: 17 uA
Input voltage (minimum): 3 V
Input voltage (maximum): 40 V
PSRR/Ripple Rejection—Typical: 70 dB
Output type: Fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: +150 C
Flyback voltage: 390 mV
Series: TPS7B87-Q1
Package: Reel
Flyback Voltage—Max: 575 mV
Load Regulation: Yes, Regulated
Humidity Sensitivity: Yes
Packing quantity: 2500 PCS
Voltage regulation accuracy: 0.85 %
