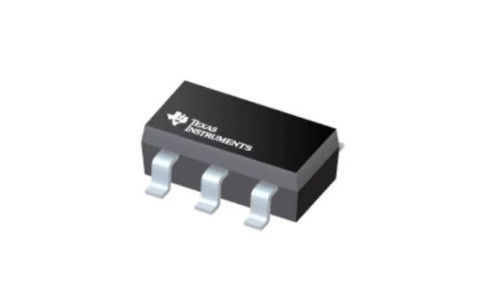

TPS7A2050PDBVR TI 300-mA, ultra-low-noise, low-IQ, low-dropout linear regulator with high PSRR SOT-23-5
Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package/Box: SOT-23-5
Output voltage: 5 V
Output current: 300 mA
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 6.5 uA
Input voltage (minimum): 1.6 V
Input voltage (maximum): 6 V
PSRR/Ripple Rejection—Typical: 95 dB
Output type: Fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 145 mV
Series: TPS7A20
Package: Reel
Development Kit: MULTIPKGLDOEVM-823
Flyback Voltage—Max: 140 mV at 300 mA
Line regulation: 0.03 %/V
Load regulation: 13 mV
Operating supply current: 70 nA
Packing quantity: 3000 PCS
Tolerance: 1.5%
