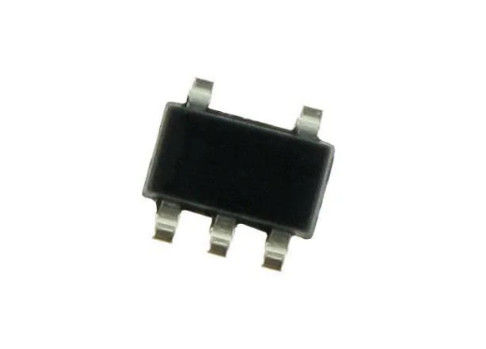

TPS78428QDBVRQ1 TI Automotive 300-mA low-IQ, high-PSRR LDO voltage regulator with high accuracy and enable SOT-23-5
Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package/Box: SOT-23-5
Output voltage: 2.8 V
Output current: 300 mA
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 25 uA
Input voltage (minimum): 1.65 V
Input voltage (maximum): 6 V
PSRR/Ripple Rejection—Typical: 52 dB
Output type: Fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: +150 C
Flyback voltage: 115 mV
Series: TPS784-Q1
Package: Reel
Development Kit: MULTIPKGLDOEVM-823
Flyback Voltage—Max: 300 mV
Line Regulation: 0.3 mV
Load regulation: 5 mV
Humidity Sensitivity: Yes
Output voltage range: 1.2 V to 5.5 V
Packing quantity: 3000 PCS
Voltage regulation accuracy: 0.5 %
