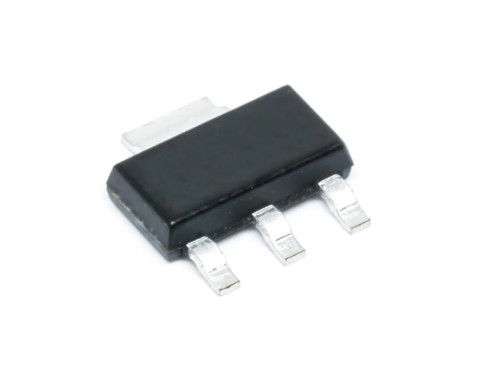

LM3940IMP-3.3/NOPB TI Low Dropout Regulator 1A LDO REG SOT-223-4

LM3940IMP-3.3/NOPB    TI     Low Dropout Regulator 1A LDO REG    SOT-223-4

LM3940IMPX-3.3/NOPB

Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package / Box: SOT-223-4
Output voltage: 3.3 V
Output current: 1 A
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 15 mA
Input voltage (minimum): 4.5 V
Input voltage (maximum): 7.5 V
Output type: Fixed
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 310 mV
Package: Reel
Flyback Voltage—Max: 0.8 V at 1A, 0.15 V at 100 mA
Ib - Input bias current: 10 mA
Line Regulation: 40 mV
Load regulation: 50 mV
Operating power current: 110 uA
Packing quantity: 1000 PCS
Unit weight: 112 mg
