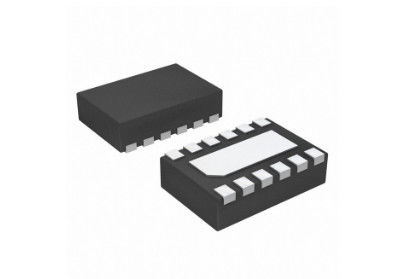

LM27762DSSR TI Regulators Positive Negative Output Charge Pump With Integrated LDO WSON-12

LM27762DSSR   TI   Regulators Low-Noise Positive- and Negative-Output Charge Pump With Integrated LDO

Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package / Cabinet: WSON-12
Output voltage: Adjustable
Output current: 250 mA
Number of outputs: 2 Output
Polarity: Positive
Quiescent current: 390 uA
Input voltage (minimum): 2.7 V
Input voltage (max): 5.5 V
PSRR/Ripple Rejection—Typical: 50 dB
Output type: Adjustable
Minimum operating temperature: - 40 C
Maximum operating temperature: +85 C
Flyback voltage: 30 mV
Series: LM27762
Package: Reel
Line Regulation: 1.5 mV/V, 1.9 mV/V
Load regulation: 11 uV/mA, 34 uV/mA
Humidity Sensitivity: Yes
Output voltage range: 1.5 V to 5 V
Packing quantity: 3000 PCS
Type: Low Noise
Unit weight: 18 mg
