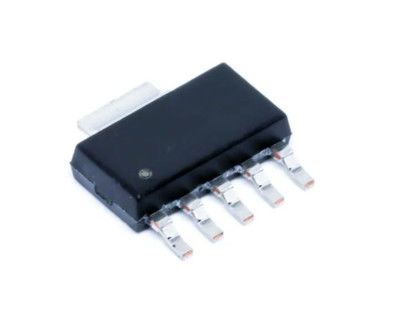

TPS78601DCQR TI LDO Voltage Regulators High PSRR Fast RF High-Enable 1.5A
Manufacturer: Texas Instruments
Product Category: Low Dropout Voltage Regulator
Installation style: SMD/SMT
Package/Box: SOT-223-6
Output current: 1.5 A
Number of outputs: 1 Output
Polarity: Positive
Quiescent current: 265 uA
Input voltage (minimum): 2.7 V
Input voltage (max): 5.5 V
Output type: Adjustable
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Flyback voltage: 390 mV
Series: TPS78601
Package: Reel
Height: 1.6 mm
Ib - Input bias current: 310 uA
Length: 6.5 mm
Line Regulation: 5%/V
Load regulation: 7 mV
Humidity Sensitivity: Yes
Operating power current: 260 uA
Output voltage range: 1.2 V to 5.5 V
Reference voltage: 1.225 V
Packing quantity: 2500 PCS
Width: 3.5mm
Unit weight: 120 mg
