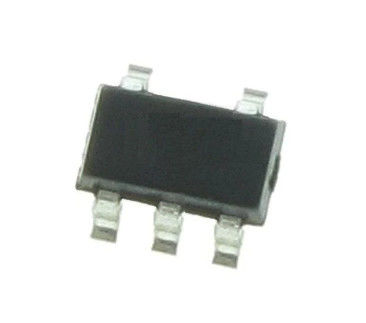

MAX823SEUK+T ADI Monitoring circuit 5-Pin Microprocessor with Watchdog Timer and Manual Reset
MAX823SEUK+
Manufacturer: Analog Devices Inc.
Product Category: Monitoring Circuit
Installation style: SMD/SMT
Package/Box: SOT-23-5
Threshold voltage: 2.93 V
Number of monitored inputs: 1 Input
Output type: Active Low, Push-Pull
Manual reset: Manual Reset
Watchdog timer: Watchdog
Battery backup switch: No Backup
Reset delay time: 200 ms
Supply voltage - Max: 5.5 V
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Series: MAX823S
Package: Reel
Chip enable signal: No Chip Enable
Height: 1.1mm
Length: 2.9mm
Operating power current: 5 uA
Overvoltage threshold: 2.96 V
Pd-power dissipation: 571 mW
Power failure detection: No
Packing quantity: 2500 PCS
Supply voltage - minimum: 1.2 V
Undervoltage threshold: 2.89 V
Width: 1.63 mm
Part number alias: MAX823S
Unit weight: 17 mg
