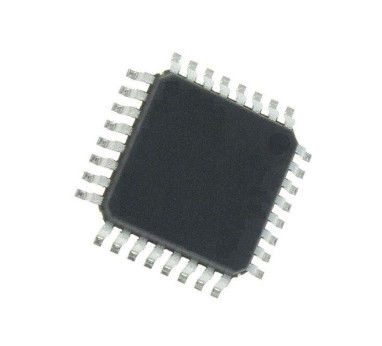

STM8S005K6T6CTR ST 8-bit Microcontroller -MCU 32 Kbytes Flash 16 MHz CPU integrated EEPROM LQFP-32
STM8S005K6T6C
Manufacturer: STMicroelectronics
Series: STM8S005K6
Installation style: SMD/SMT
Package/Box: LQFP-32
Core: STM8
Program memory size: 32 kB
Data bus width: 8 bit
ADC resolution: 10 bit
Maximum clock frequency: 16 MHz
Number of inputs/outputs: 25 I/O
Data RAM size: 2 kB
Supply voltage - minimum: 2.95 V
Supply voltage - Max: 5.5 V
Minimum operating temperature: - 40 C
Maximum operating temperature: +85 C
Package: Reel
Data Ram Type: SRAM
Data ROM size: 128B
Data Rom Type: EEPROM
Interface type: I2C, SPI, UART
Humidity Sensitivity: Yes
Number of ADC channels: 8 Channel
Processor series: STM8S0
Program memory type: Flash
Packing quantity: 2400 PCS
Watchdog Timer: Watchdog Timer
Unit weight: 370 mg
