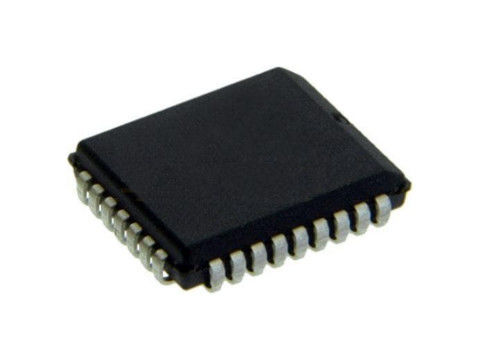

SST39SF010A-55-4C-NHE Microchip NOR Flash 4.5 to 5.5 1Mbit Multi-Purpose Flash PLCC-32
SST39SF010A-55-4C-NHE-T
Manufacturer: Microchip
Installation style: SMD/SMT
Package/Box: PLCC-32
Series: SST39SF
Storage capacity: 1 Mbit
Supply voltage - minimum: 4.5 V
Supply voltage - Max: 5.5 V
Active read current (max): 25 mA
Interface type: Parallel
Organization: 128k x 8
Data bus width: 8 bit
Timing type: Asynchronous
Minimum operating temperature: 0 C
Maximum operating temperature: +70 C
Package: Tube
Structure: Sector
Storage type: NOR
Humidity Sensitivity: Yes
Speed: 55 ns
Packing quantity: 30 PCS
Unit weight: 1.129 g
Our products are sold all over the world, you can rest assured.
