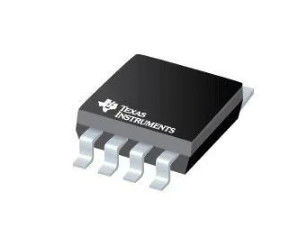

THS4551IRUNR TI Differential Amplifier Ic Low Noise Precision 150MHz

THS4551IRUNR    TI     Differential Amplifier Low Noise Precision 150MHz Fully Differential Amplifier     QFN-10

THS4551IRGTR
THS4551IRUNT
THS4551IRGTT
THS4551IDGKT
THS4551IDGKR

Manufacturer: Texas Instruments
Number of channels: 1 Channel
GBP-Gain Bandwidth Product: 135 MHz
SR - Slew Rate: 220 V/us
CMRR - Common Mode Rejection Ratio: 110 dB
Output current per channel: 45 mA
Ib - Input bias current: 1.5 uA
Vos - Input bias voltage: 175 uV
Supply voltage - Max: 5.4 V
Supply voltage - minimum: 2.7 V
Operating power current: 1.35 mA
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Installation style: SMD/SMT
Package/Box: QFN-10
Package: Reel
3dB bandwidth: 150 MHz
en - Input voltage noise density: 3.3 nV/sqrt Hz
Features: Small Size, Shutdown
Gain V/V: 999 mV/V
In—Input noise current density: 500 fA/sqrt Hz
Input type: Rail-to-Rail
Ios - Input bias current: 78 nA
Humidity Sensitivity: Yes
Output type: Rail-to-Rail
Stabilization time: 50 ns
Close: Shutdown
Packing quantity: 3000 PCS
Unit weight: 11.800 mg
