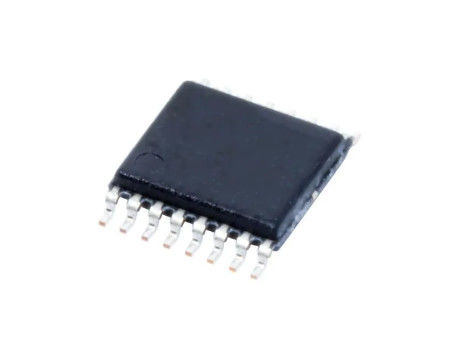

THS4522IPWR TI Differential amplifier Lo Pwr dual channel R-R fully Diff amp TSSOP-16
THS4522IPW
Product Category: Differential Amplifier
Number of channels: 2 Channel
GBP-Gain Bandwidth Product: 95 MHz
SR - Slew Rate: 490 V/us
CMRR - Common Mode Rejection Ratio: 102 dB
Output current per channel: 55 mA
Ib - Input bias current: 900 nA
Vos - input bias voltage: 2 mV
Supply voltage - Max: 5.5 V
Supply voltage - minimum: 2.5 V
Operating power current: 1.14 mA
Minimum operating temperature: - 40 C
Maximum operating temperature: +85 C
Installation style: SMD/SMT
Package/Case: TSSOP-16
Package: Reel
Development Kit: THS4522EVM
Features: Shutdown
Gain V/V: 0.99 V/V
Height: 1.15 mm
Input type: Rail-to-Rail
Length: 5 mm
Maximum dual supply voltage: +/- 2.75 V
Minimum dual supply voltage: +/- 1.5 V
Humidity Sensitivity: Yes
Operating power supply voltage: 5 V
Output type: Rail-to-Rail
PSRR - Power Supply Rejection Ratio: 80 dB
Packing quantity: 2000 PCS
Power supply type: Single, Dual
Voltage gain dB: 119 dB
Width: 4.4mm
Unit weight: 62 mg
