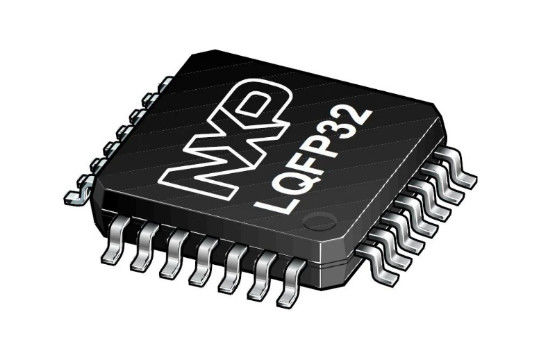

4K RAM 32K FLASH Microcontroller 40MHz ARM Based MCUs S9KEAZN32ACLC

S9KEAZN32ACLC    N X P    ARM Microcontroller - MCU 32K FLASH 4K RAM 40MHz 32LQFP   AEC-Q100

Manufacturer: N X P
Product Category: ARM Microcontrollers - MCUs
Series: KEA32
Installation style: SMD/SMT
Package / Box: LQFP-32
Core: ARM Cortex M0+
Program memory size: 32 kB
Data bus width: 32 bit
ADC resolution: 12bit
Maximum clock frequency: 40 MHz
Number of inputs/outputs: 28 I/O
Data RAM size: 4 kB
Supply Voltage - Min: 2.7 V
Supply Voltage - Max: 5.5 V
Minimum working temperature: - 40 C
Maximum working temperature: + 85 C
Qualification: AEC-Q100
Package: Tray
Analog supply voltage: 2.7 V to 5.5 V
DAC resolution: 6 bits
Data Ram Type: RAM
Data ROM size: 256 B
Data Rom Type: EEPROM
Interface type: I2C, SPI, UART
Humidity Sensitivity: Yes
Number of ADC channels: 16 Channel
Processor family: KEA64
Program memory type: Flash
Packing Quantity: 250 PCS
Watchdog Timer: Watchdog Timer
Part Number Alias: 935323623557
Unit weight: 188.600 mg

S9KEAZN32AVLCR

S9KEAZN32AMLC
S9KEAZN32AMLCR
S9KEAZN32AMLH
S9KEAZN32AVLC
S9KEAZN32AVLH
S9KEAZN32ACLH
