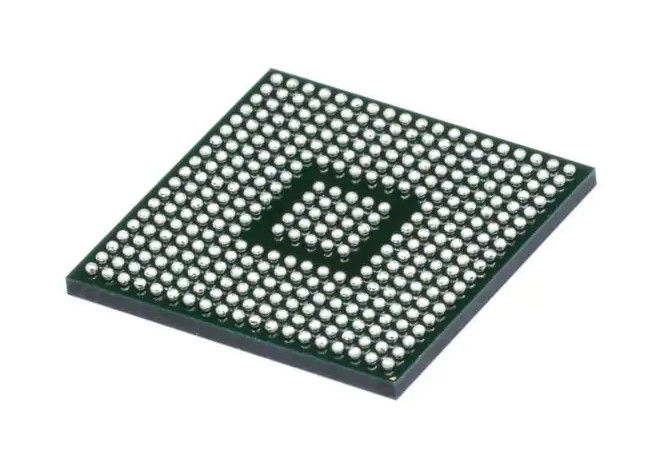

FlexRay Microcontroller MCU RISC TMS5703137DZWTQQ1 ARM Cortex-R4F

TMS5703137DZWTQQ1    TI    16/32 Bit RISC Flash MCU ARM Cortex-R4F EMAC FlexRay NFBGA-337

Manufacturer: Texas Instruments
Product Category: ARM Microcontrollers - MCUs
Series: TMS570LS3135
Installation style: SMD/SMT
Package / Box: NFBGA-337
Core: ARM Cortex R4F
Program memory size: 3 MB
Data bus width: 32 bit/16 bit
ADC resolution: 12bit
Maximum clock frequency: 180 MHz
Number of I/Os: 144 I/O
Data RAM size: 256 kB
Supply Voltage - Min: 1.14 V
Supply Voltage - Max: 1.32 V
Minimum working temperature: - 40 C
Maximum working temperature: + 125 C
Qualification: AEC-Q100
Package: Tray
Analog supply voltage: 3 V to 5.25 V
Data Ram Type: RAM
Data ROM size: 64 kB
Data Rom Type: EEPROM
I/O voltage: 3.3V
Interface type: CAN, I2C, SCI/LIN, SPI
Humidity Sensitivity: Yes
Number of ADC channels: 24 Channel
Processor Family: TMS570
Program memory type: Flash
Packing Quantity: 90 PCS
Watchdog Timer: Watchdog Timer, Windowed
Unit weight: 652.500 mg
