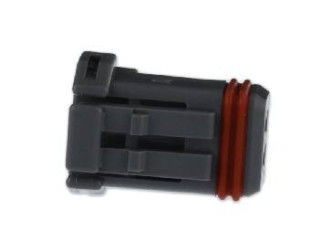

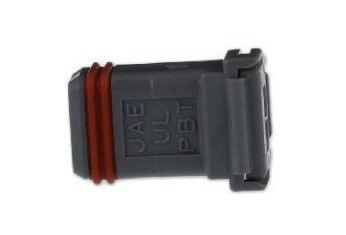

2P Waterproof Automotive Connector 2 Way MX19002S52 Sckt Housing

MX19002S52    JAE Electronics    Automotive Connector 2P Sckt Housing Gray 2 way connector

MX19002S51

Manufacturer: JAE Electronics
Product Type: Automotive Connectors
Attachment Type: -
Number of positions: 2 Position
Pitch: 2.5mm
Type: Receptacle (Female)
Mounting style: Cable Mount / Free Hanging
Termination Type: Crimp
Wire Gauge Minimum: 22 AWG
Wire Gauge Maximum: 20 AWG
Color: Gray
Series: MX19
Package: Bulk
Cable Diameter/Insulation Range: 1.4 mm to 1.7 mm
Contact Type: Without Socket Contacts
Current Rating: 5 A
Description/Function: Small waterproof relay connector
Features: Mechanical lock mechanism prevents incomplete mating, and improved insertion and removal
Housing material: Polybutylene Terephthalate (PBT)
Insulation resistance: 100 MOhms
Maximum working temperature: + 105 C
Minimum working temperature: - 40 C
Rows: 1 Row
Product Type: Automotive Connectors
Packing Quantity: 2000 PCS
Subcategory: Automotive Connectors
Type: Wire Housing
Wire gauge range: 22 AWG to 20 AWG
Unit weight: 660 mg
