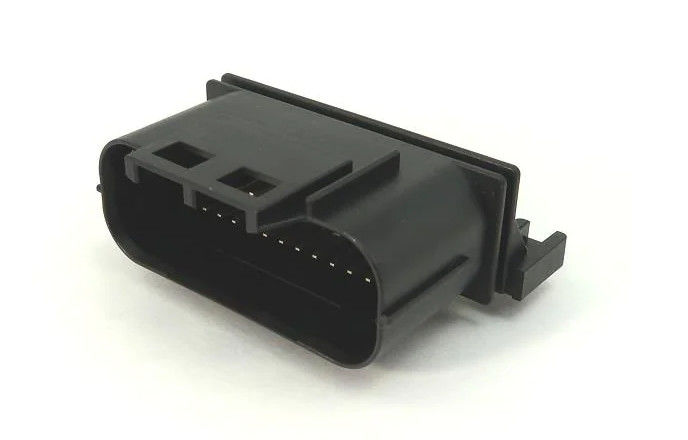

26P Automotive Wire Connector Std Pin Header MX23A26NF1 Through Hole

MX23A26NF1    JAE Electronics    Automotive Connector 26P Std Pin Header

MX23A26SF1
MX23A26UF1

MX23A26XF1
MX23A26NF2

MX23A26XF2

MX23A26NF3
MX23A26NF5

Manufacturer: JAE Electronics
Product Type: Automotive Connectors
Number of positions: 26 Position
Pitch: 2.5mm
Type: Pin (Male)
Installation Style: Through Hole
Termination Type: Solder Pin
Contact Plating: Tin
Wire Gauge Minimum: 22 AWG
Maximum Wire Gauge: 16 AWG
Color: Black
Series: MX23A
Package: Bulk
Contact Material: Copper Alloy
Current Rating: 3 A
Description/Function: Connector can be used for wide range water proof equipment including automobiles, motorcycles
Features: Compact type low-profiled waterproof connector
Insulation resistance: 100 MOhms
Length: 44mm
Material: Polybutylene Terephthalate (PBT)
Maximum working temperature: + 125 C
Minimum working temperature: - 40 C
Mounting Angle: Right Angle
Rows: 2 Row
Outer Diameter: 1.6mm to 2.2mm
Packing Quantity: 160 PCS
Subcategory: Automotive Connectors
Type: Headers
Wire gauge range: 22 AWG to 16 AWG
Unit weight: 17.532 g
